what


a lightcell is an engine that uses light to make electricity

(schematic)

hydrogen/fuel

combustion

ultralight power

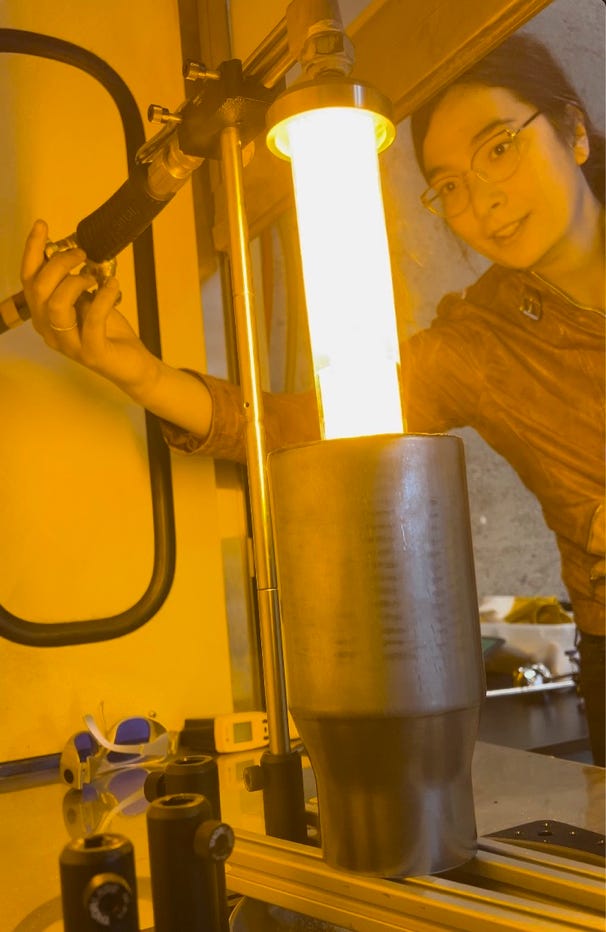

lightcells burn hydrogen/fuel mixed with sodium illuminant

hot sodium illuminant emits near monochromatic light,

which tuned photovoltaic cells collect to make electricity

sodium illuminant

optical cavity

infrared recycling

⇝

⇝

ceramic recuperator,

 heat recycling



3000 suns

 yellow light (~2.1eV)

bandgap-tuned

photovoltaic cells (~2.1 eV)

electricity

why

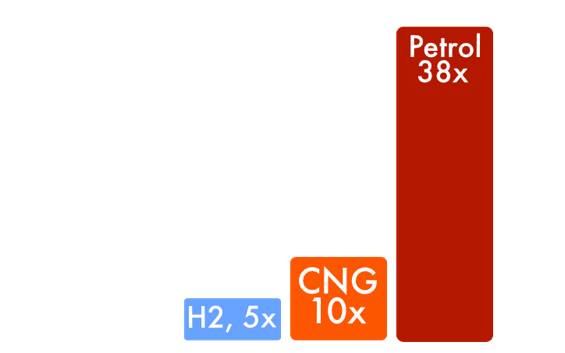

unlock the incredible energy density of hydrogen/fuel


in a highly efficient

whisper quiet package

lightcell can use hydrogen

lightcell can use fuel


natural gas

gasoline

ammonia

butane

propane

alcohols

syngas...

use hydrogen for most cycles

use fuel for extended duration

ideally, synthetic, net zero carbon emissions fuels

how

 target efficiency:    ≥ 40% wire to wire

power:                 ≥  5 kw / kg

energy density:         ≫ 500 watthours/L



module size:                    ≥  10kw, < 4 L

hot sodium emits intense,

nearly monochromatic light,

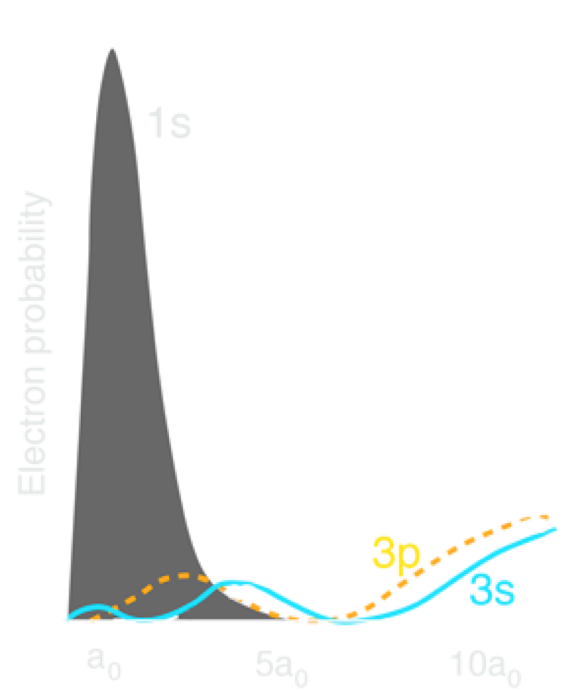

sodium's lone outer shell electron is easily excited



(vid: hacksmith, youtube, 2020)

sodium's weakly bound,

lone outer electron
"rings like a bell" at 2.1 eV,


it takes only nanoseconds for the energy absorbed to be reemitted


as 589 nm, 2.1 eV photons
when sodium relaxes to its ground state

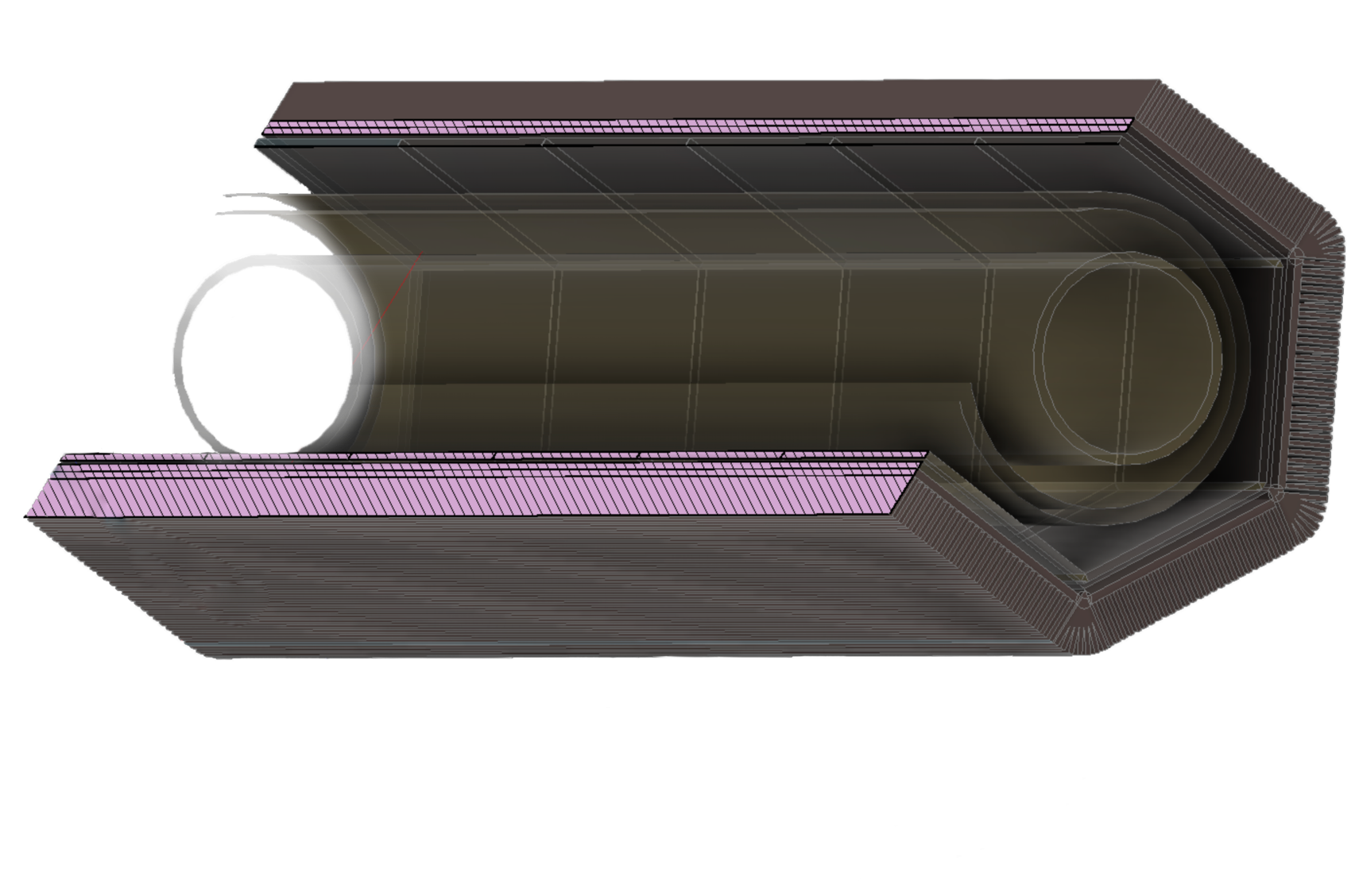

the transparent reaction cylinder is surrounded by a shell of "hot mirrors", which reflect infrared photons & let visible light through.

this allows for a recycling of waste heat, dramatically increasing efficiency


who

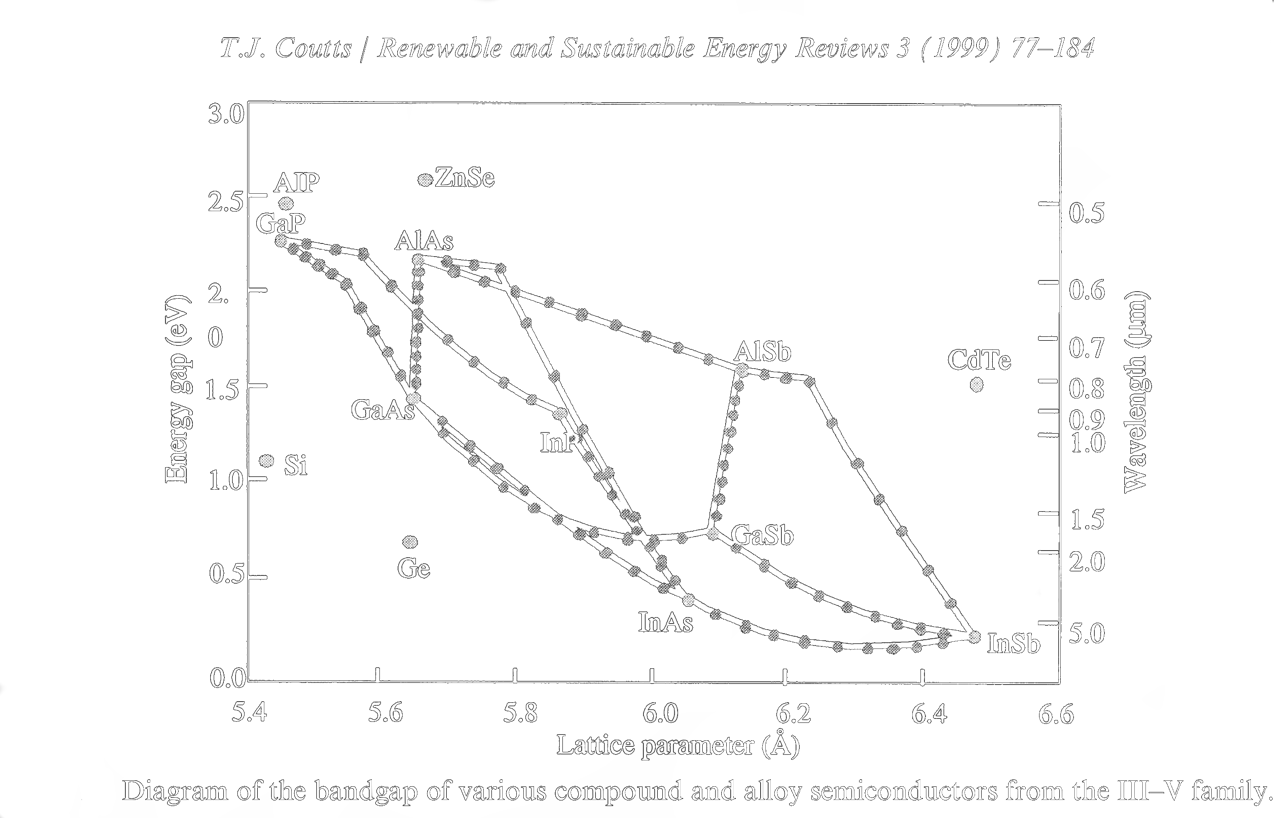

2.1 eV photons can be efficiently absorbed by a photovoltaic cell with a bandgap tuned to 2.1 eV


we can harness the materials developed for solar concentrating multijunction cells

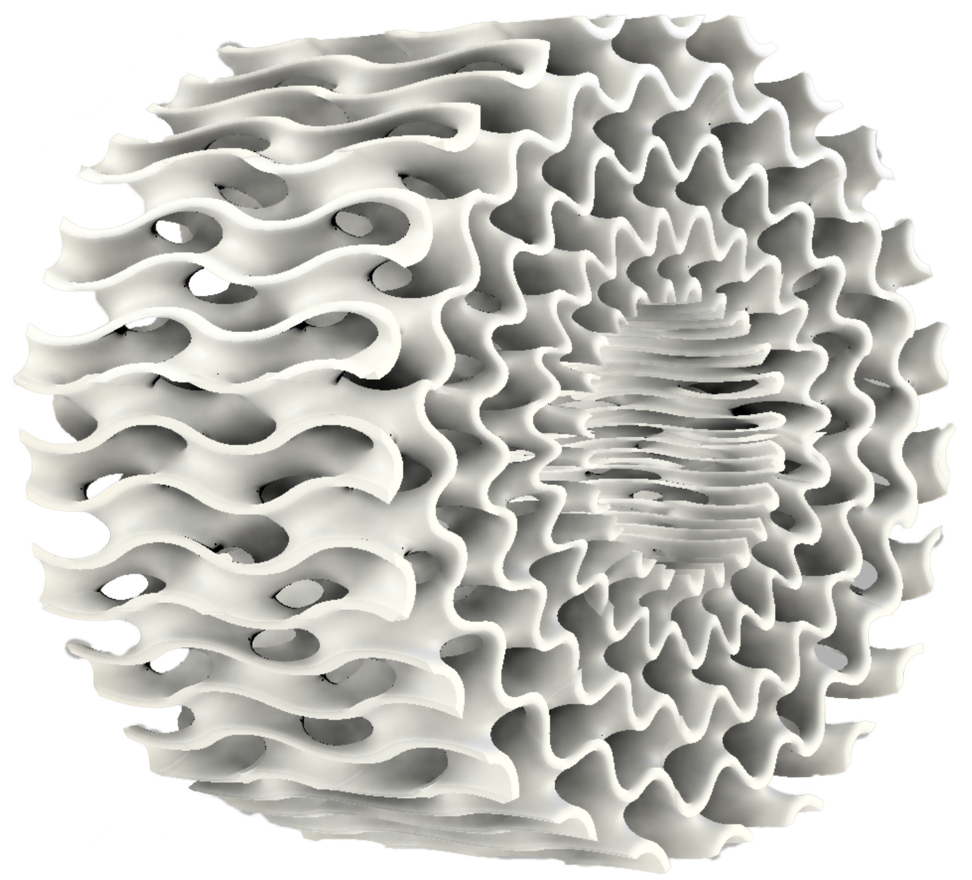

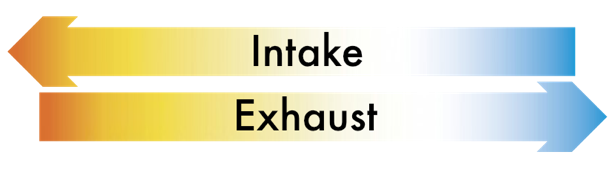

a ceramic, 3d printed counterflow heat exchanger acts as a recuperator, collecting ~90% of the heat from the exhaust, and efficiently preheating intake air and fuel.


its many wiggles form an optical labyrinth, reducing losses from light leaking out the ends more than 20 fold

Physicist (Princeton PPPL)


MIT TR35, Forbes 30u30


Inventor, lightcell

Cofounder, LightSail Energy

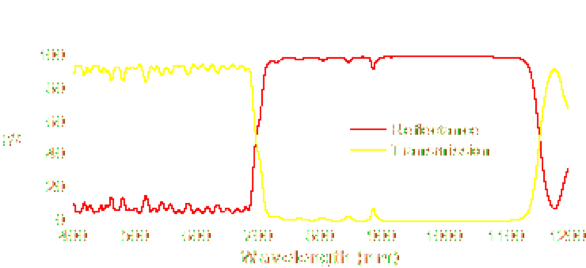

"hot mirror" infrared reflector reflectance vs transmission

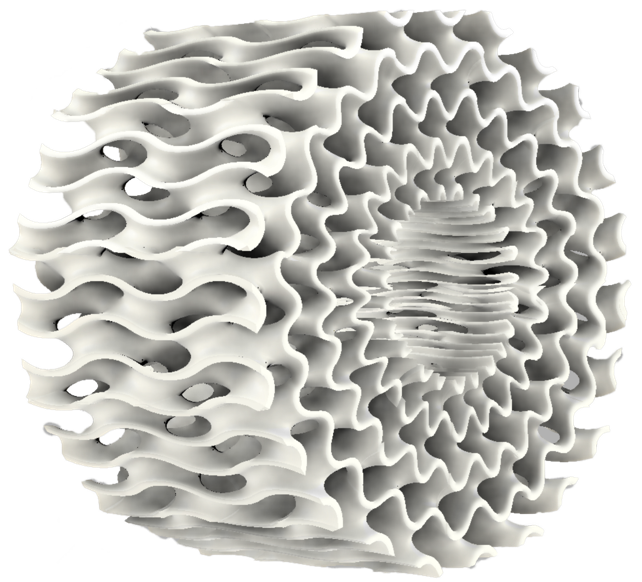

counterflow ceramic recuperator



Steve Crane, COO

Danielle Fong, CEO

BS. MIT (Geophysics)
PhD. UCSD-Scripps

60+ patents in energy

Startup Technical Executive

Cofounder, LightSail Energy

Jon Mapel,

Chief of Development

PhD MIT Electrical Engineering


Serial hardware cofounder in LiDAR, Photovoltaics, LED lighting

Shipped dozens of new products

when

founded: 2022

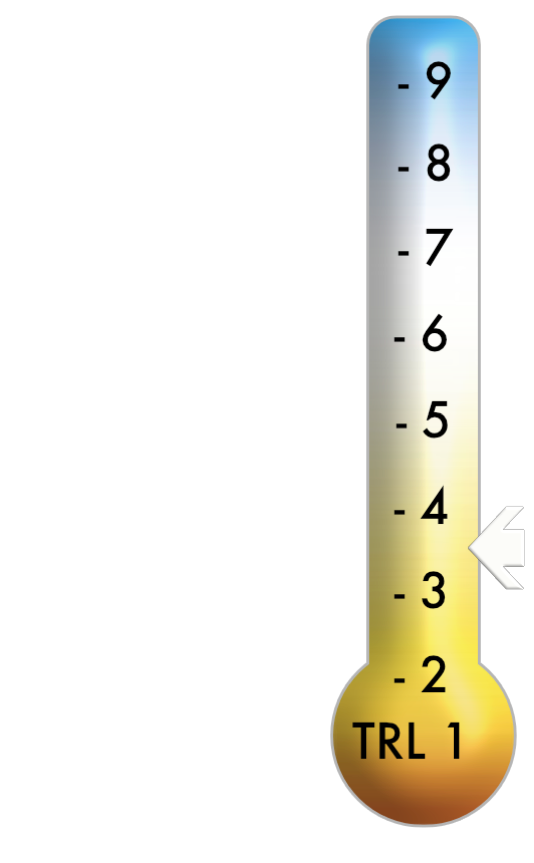

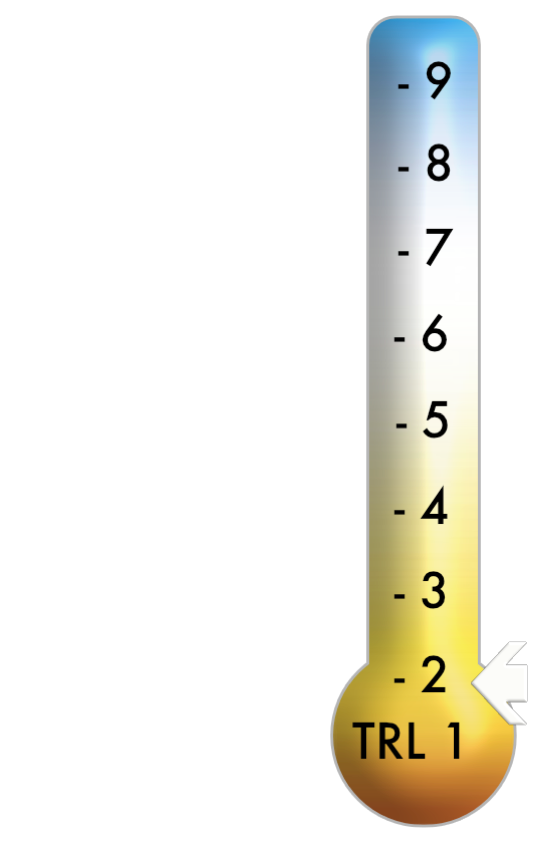

lightcell is a novel concept engine in development


there's prior art from fields such as concentrated solar, pyrotechnics (fireworks), sodium lamps, and thermophotovoltaics,

however, to our knowledge no past effort brought these concepts together.


this effort harnesses advanced new materials,
and uses physics at photon densities rarely explored.
